7447714220
Manufacturer:
Wurth Electronics
Mfr.Part #:
7447714220
Datasheet:
Description:

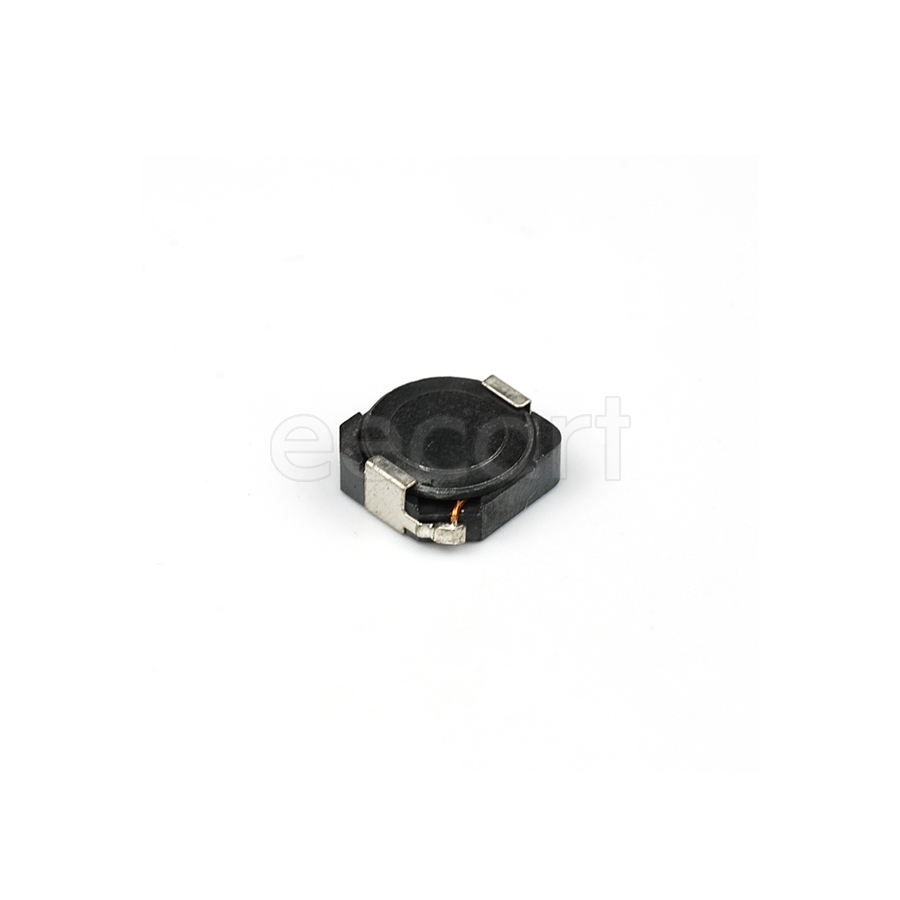

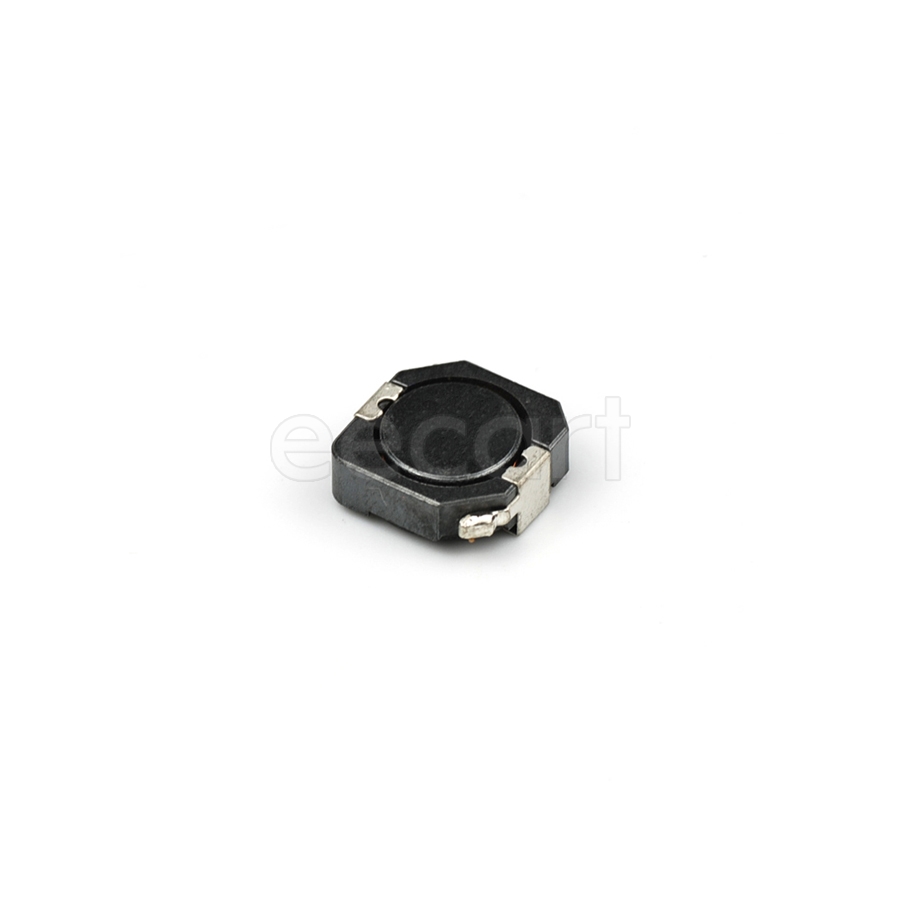

Fixed Inductors 10.00mmL×10.00mmW×5.00mmH SMD/SMT 22 µH 20 % 3 A 50 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5 mm |
| Length | 10 mm |
| Width | 10 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 50 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 5 mm |
| Packaging | Reel |
| Depth | 10 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 14.5 MHz |
| Current Rating | 3 A |
| DC Resistance (DCR) | 50 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 22 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3 A |
| inductance tolerance | 20 % |
| Max DC Current | 3 A |
| Series Resistance | 50 mΩ |
| Saturation Current | 3.6 A |
| Type | Wirewound |
Stock: 112
Distributors
pcbx
pcbxUnit Price$1.53645
Ext.Price$1.53645
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.53645 | $1.53645 |
| 10 | $1.29172 | $12.91720 |
| 25 | $1.17874 | $29.46850 |
| 50 | $1.07564 | $53.78200 |
| 100 | $0.98155 | $98.15500 |
